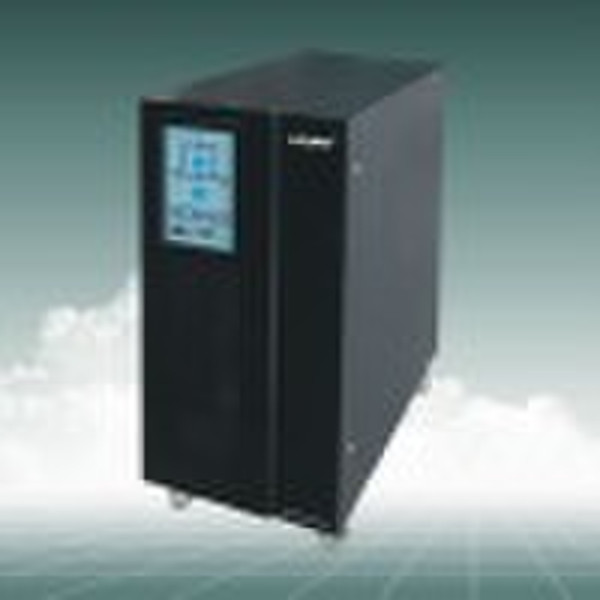

RT series high frequency online ups(6kva-20kva)

RT-***** Model high frequency on-line TE6022M TE6022L TE1032M TE1032L TE1034L TE1534L TE2034L TC6022M TC6022L TC1032M TC1032L TC1034L TC1534L TC2034L Rated capacity(COS=0.7) 6KVA 6KVA 10KVA 10KVA 10KVA 15KVA 20KVA Input Input wiring Single-phase line two + ground line Three-phase line four + ground line Voltage range 176∼276VAC 304∼478VAC Frequency range 46∼54Hz Power factor 0.95 Output Voltage 220VAC±2% Frequency Input synchronized the supply frequency(line mode),50Hz±0.1%(Battery mode) Power factor 0.7Current crest ratio 3:1Waveform Sine waveOverload capacity 105%-130% maintain 10 minutes turn off and to bypass output, 130%-300% maintain 200ms turn off and to bypass output maintain 1 minute turn off output, 300% above turn off output immediately Standard backup time(full or half load) 7/20 5/13 Efficiency 91% 90% Voltage of battery 240VDC Transfer time Zero interruptionAutomatic Bypass IntegratedIndicator Indicates load/battery capacity, UPS running states etc.Audible alarm Battery discharge Sounding every 4 seconds when mains failsSounding every 1 second when battery exhausts Abnormal Beeping continuously Parallel Port(option) Up to three units in parallel for power redundancy and load sharing Communication interface RS232 + SNMP(option)Operating environment Temperature 0∼40Humidity 20%∼90%, no condensateExternal/Shipping Size W×D×H(mm) 260×570×720/450×705×1000 Net/Gross weight(kg) 84/94.5 35/52 84/94.5 35/44 35/48 55/72 55/72 Option (SNMP Adapter) , Battery cubicle, Parallel Port, Maintenance Switch
