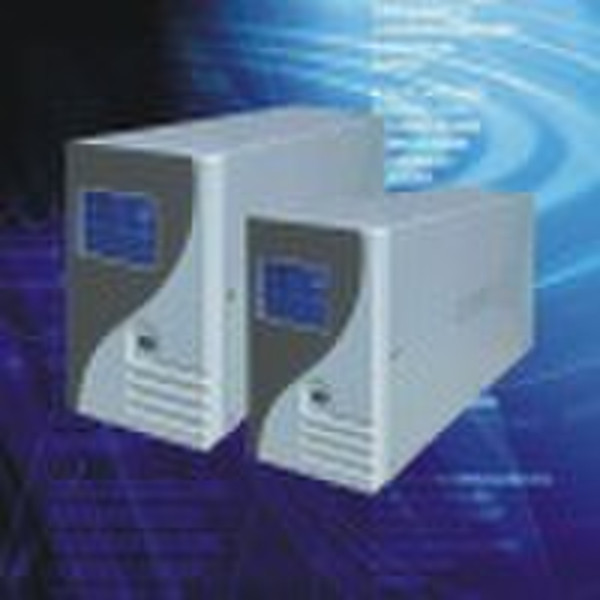

V series off-line ups(LCD)

offline ups Model H-V**** 053YB 101YB Max. capacity(VA/W) 500VA(300W) 1000VA(600W) Display LCD Input commercial power range (VAC) 100/110/120/127/220/230(25%,35%) Frequency 60/50Hz±5% Output commercial power Sine-wave inversion Simulated sine-wave frequency 60/50Hz±0.5 AVR voltage range 100/110/120/127/220/230±10%Auto-sensing transfer time 5Typical:5ms(including detection time) Protection Spark protection 320joules,2ms Filter 10dB at 0.15MHz,50dB at 30Hz Overload Automatic shutdown if overload exceeds 120%-180% of normal value TEL/FAX/MODEM RJ45/11 JACKS Short circuit UPS output is cut off immediately or input circuit breaker protection Battery Type Sealed, maintenance-free lead acid Capacity (12V,7Ah)×1 (12V,12Ah)×1 Recharge time 8 hours to 90% of full capacity Back-up time Typical 10 min(half load) With PC(personal computer 110W with expect operation time) Typical 10-30 min Typical 30-50 min Battery protection Automatic self-test, discharge protection Communication interface RS232B Bi-directional communication port Appearance Size(mm)D×W×H 320×90×150 355×110×160 Size(mm)D×W×H 375×134×235 450×180×230 Size(mm)D×W×H 413×383×245(3 three pieces) 457×382×242(2 two pieces) Net weight(kg) 6.0 10.0 Gross weight 6.5 10.8 Net weight(kg) 20.3 22.4
